Quad Flat Pack (QFP)  Lead Straightener                       Surface Mount Pin Aligning Tool                Straighten TQFP, QFP, LQFP Leads
Quad Flat Pack Pin & Lead Straightening Tool

Lead Straightening, Ameritronics, TopLine, Lead, Straightener, QFP

Easy to Use for Straightening Bent Pins on QFP Packages. Ideal for QC for Verifying Pin Counts, Pitch Sizes and Straightness of Pins Like the QFP 100 Shown Below.

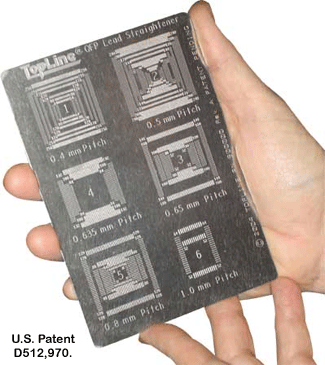

The AT-900000 QFP template tool reworks and aligns bent pins of all sizes of QFP's and TQFP's and to correct co-planarity problems. The Lead Straightener handles chips with lead/pin pitches from 0.4mm to 1.0mm

The template accommodates 46 different QFP patterns and is ideal for component recovery or salvage of expensive QFP, TQFP and LQFP packages/chips.  Use standard handtools like dental picks and tweezers to adjust the QFP pins to match recessed template slots.

This is an essential Quality Control (QC) tool for pin number verification along with body size and pitch of unknown QFP components.  The template is constructed of heavy duty conductive 50 mil (1.27mm) thick stainless steel with 5 mil deep etched recessed patterns that precisely match the leads of the QFP/TQFP. It is ESD-Safe and RoHS Compliant (Lead-Free). Topline®, the manufacturer recommends it use to be on a grounded bench pad with wrist strap.


Topline, Lead Straightener, QFP, LQFP,TQFP, Straightening, Template, Patented

The AT-900000 Reshapes, Re-aligns, Straightens QFP, TQFP & LQFP Packages to Ultra-Fine Pitch.

Product Specs &Technical Data

AT-900000 Lead Straightener


Re-Shapes Your Chip Leads
Re-Aligns  Your Chip Leads
46 Different Patterns On Same Template
Acid Proof
Non-Corrosive Stainless Steel

Pitch Range From 0.4mm to 1.0mm !
Patented Design
No Minimum Orders

AT-900000 Lead Straightener

DESCRIPTION

 Lead Straightener, QFP, LQFP,TQFP

AT-900000
Lead Straightener Plate


Stainless Steel Plate
With 46 Patterns for
QFP, LQFP & TQFP

Only $199
